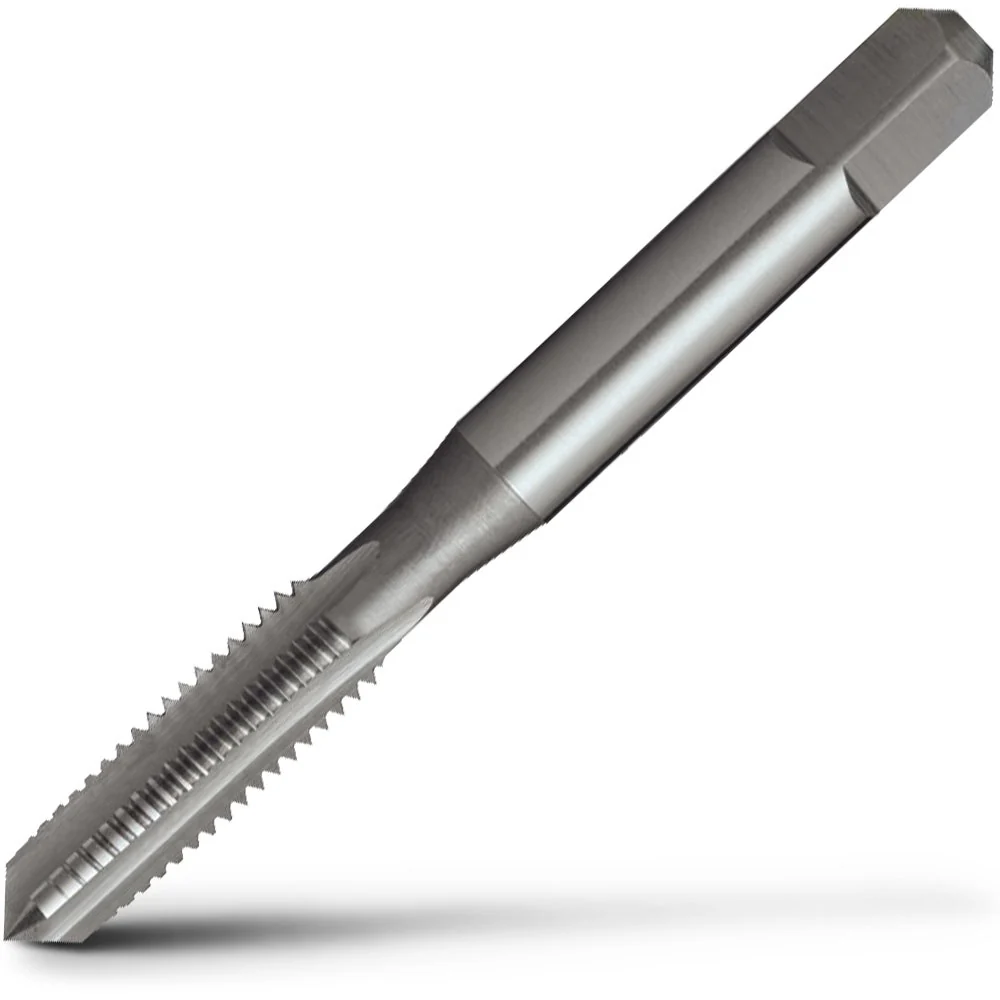

SUTTON M12 X 1.5 STRAIGHT FLUTE TAP - TAPER T4011207
General-purpose use
Suitable for materials up to 1000N/mm2
Through & blind holes
Suitable for both hand and machine operations
Depths up to approx. 1 x d1
Specifications
Designation: N
Finish: Brt
Shank Form: A
Type: Straight Flute
Thread Form: MF
Lead: Taper
Material: HSS
Max Cut Depth: 1xD
x: als
Standard: ISO529
Nut Tolerance: ISO 2 / 6H
Size:
d1: MF12
11: 89
l2: 29
l3: -
d2: 9
sq: 7.1
l4: 10
z: 4
Drill Ø: 10.5
Pitch: 1.5
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
General-purpose use
Suitable for materials up to 1000N/mm2
Through & blind holes
Suitable for both hand and machine operations
Depths up to approx. 1 x d1
Specifications
Designation: N
Finish: Brt
Shank Form: A
Type: Straight Flute
Thread Form: MF
Lead: Taper
Material: HSS
Max Cut Depth: 1xD
x: als
Standard: ISO529
Nut Tolerance: ISO 2 / 6H
Size:
d1: MF12
11: 89
l2: 29
l3: -
d2: 9
sq: 7.1
l4: 10
z: 4
Drill Ø: 10.5
Pitch: 1.5
