SUTTON #12 X 28 UNF HSS HAND TAP SET - 3 PIECE T9040549

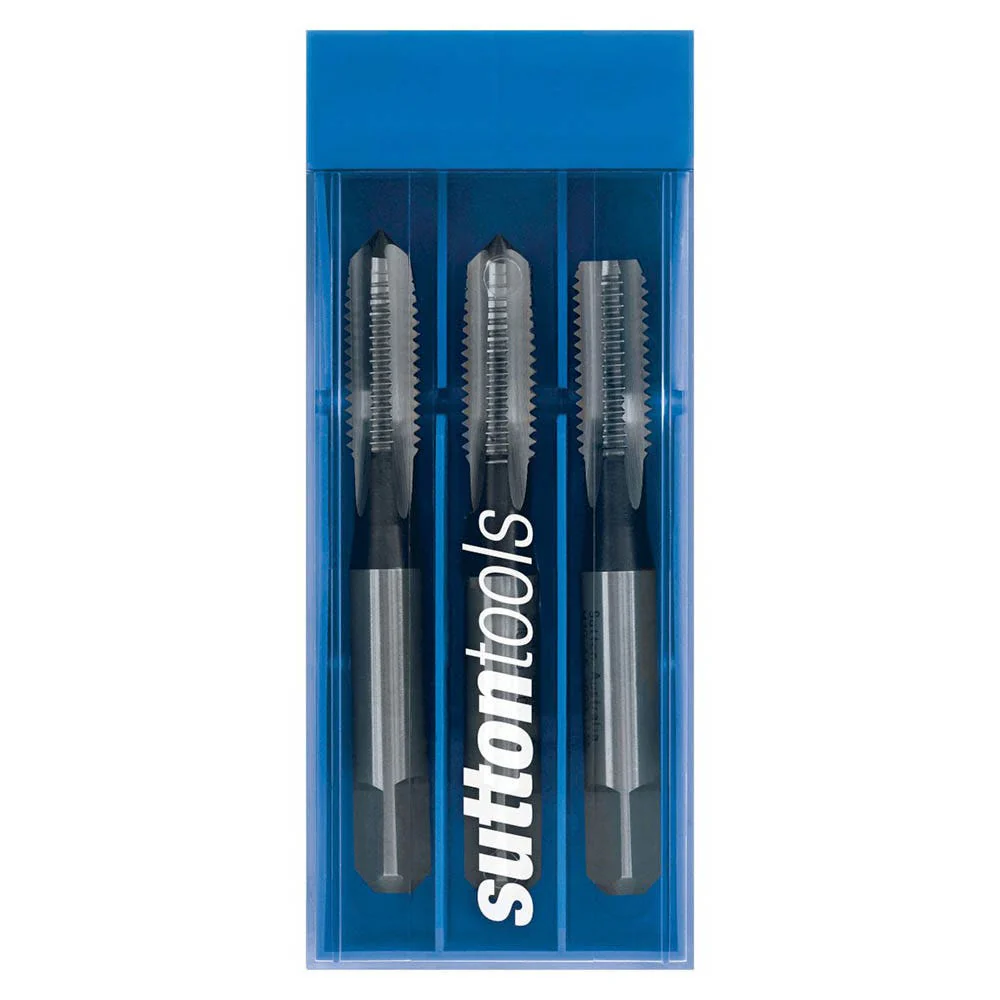

Product image 1

SUTTON #12 X 28 UNF HSS HAND TAP SET - 3 PIECE T9040549

General purpose use
Suitable for materials up to 1000N/mm2
Through & blind holes
Suitable for both hand and machine operations
Depths up to approx. 1 x d1

Specifications

Designation: N
Material: HSS
Finish: Brt
Max Cut Depth: 1xD
Shank Form: A
Standard: ISO529
Thread Form: UNF
Nut Tolerance: 2B
Lead: Set
TPI: 28
Length l1 (mm): 62
Length l2 (mm): 17
Diameter d2 (mm): 5.6
sq: 4.5
Length l4 (mm): 7
z: 3

$46.58
SUTTON #12 X 28 UNF HSS HAND TAP SET - 3 PIECE T9040549—
$46.58

Product Information

Shipping & Returns

Description

General purpose use
Suitable for materials up to 1000N/mm2
Through & blind holes
Suitable for both hand and machine operations
Depths up to approx. 1 x d1

Specifications

Designation: N
Material: HSS
Finish: Brt
Max Cut Depth: 1xD
Shank Form: A
Standard: ISO529
Thread Form: UNF
Nut Tolerance: 2B
Lead: Set
TPI: 28
Length l1 (mm): 62
Length l2 (mm): 17
Diameter d2 (mm): 5.6
sq: 4.5
Length l4 (mm): 7
z: 3
