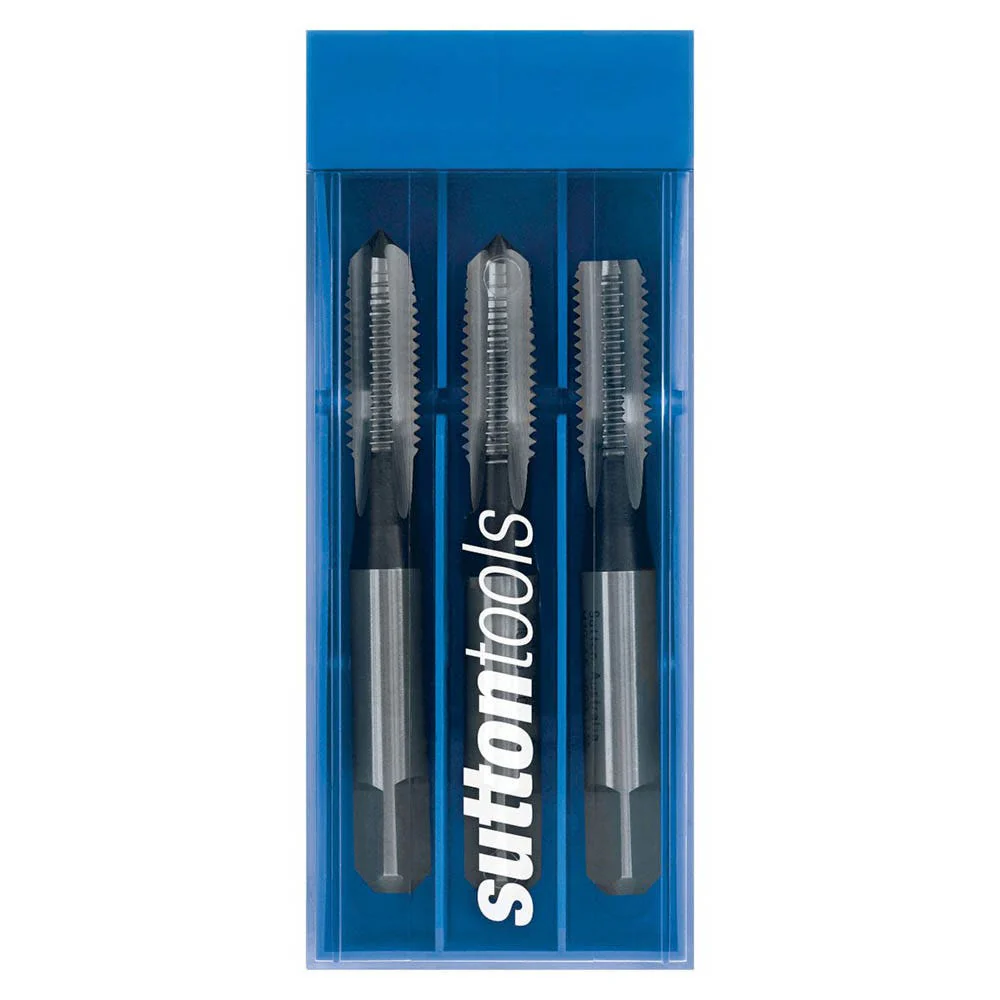

SUTTON 1" X 8 UNC HSS HAND TAP SET - 3 PIECE T9032540
General purpose use
Suitable for materials up to 1000N/mm2
Through & blind holes
Suitable for both hand and machine operations
Depths up to approx. 1 x d1
Specifications
Designation: N
Material: HSS
Finish: Brt
Max Cut Depth: 1xD
Shank Form: A
Standard: ISO529
Thread Form: UNC
Nut Tolerance: 2B
Lead: Set
TPI: 8
Length l1 (mm): 130
Length l2 (mm): 45
Diameter d2 (mm): 18
sq: 14
Length l4 (mm): 18
z: 4
Original: $288.78
-65%$288.78
$101.07Product Information
