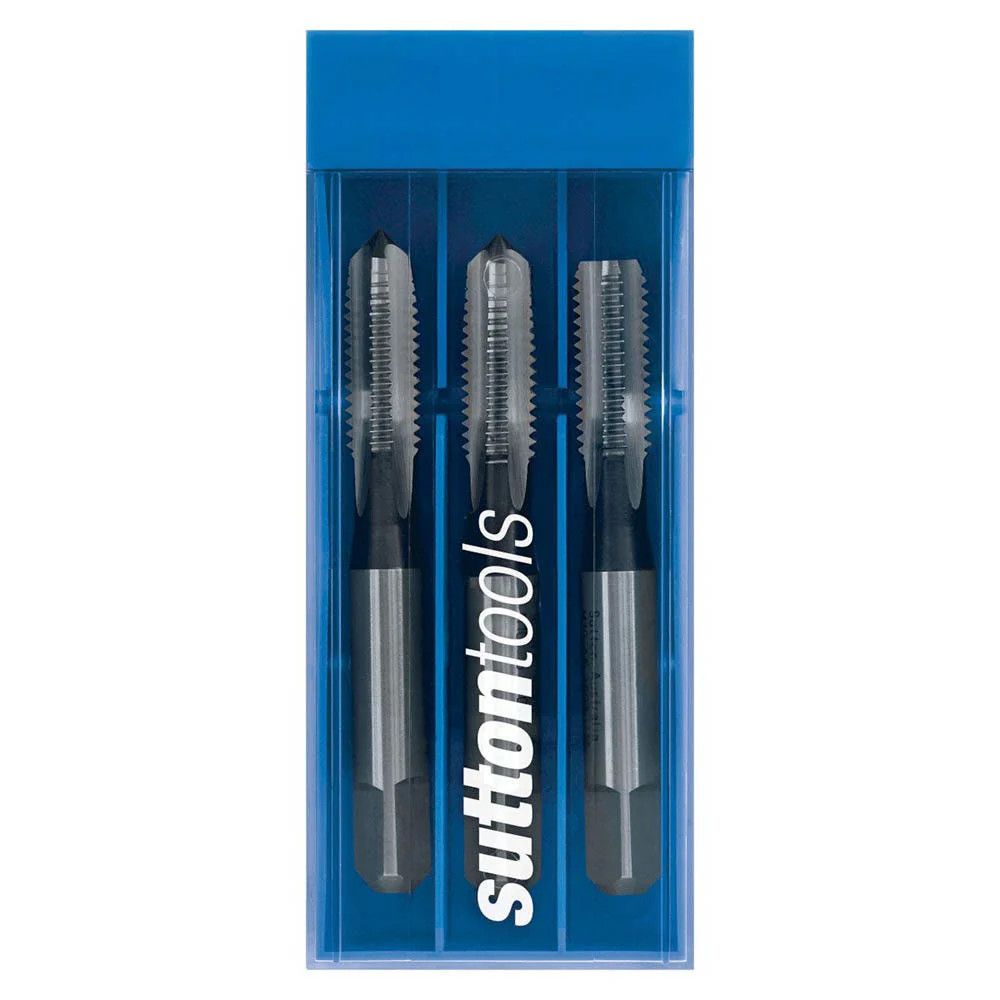

SUTTON 1/4" X 28 UNF HSS HAND TAP SET - 3 PIECE T9040635

Product image 1

SUTTON 1/4" X 28 UNF HSS HAND TAP SET - 3 PIECE T9040635

General purpose use
Suitable for materials up to 1000N/mm2
Through & blind holes
Suitable for both hand and machine operations
Depths up to approx. 1 x d1

Specifications

Designation: N
Material: HSS
Finish: Brt
Max Cut Depth: 1xD
Shank Form: A
Standard: ISO529
Thread Form: UNF
Nut Tolerance: 2B
Lead: Set
TPI: 28
Length l1 (mm): 66
Length l2 (mm): 19
Diameter d2 (mm): 6.3
sq: 5
Length l4 (mm): 8
z: 3

$12.54

Original: $35.83

-65%
SUTTON 1/4" X 28 UNF HSS HAND TAP SET - 3 PIECE T9040635—

$35.83

$12.54

Product Information

Shipping & Returns

Description

General purpose use
Suitable for materials up to 1000N/mm2
Through & blind holes
Suitable for both hand and machine operations
Depths up to approx. 1 x d1

Specifications

Designation: N
Material: HSS
Finish: Brt
Max Cut Depth: 1xD
Shank Form: A
Standard: ISO529
Thread Form: UNF
Nut Tolerance: 2B
Lead: Set
TPI: 28
Length l1 (mm): 66
Length l2 (mm): 19
Diameter d2 (mm): 6.3
sq: 5
Length l4 (mm): 8
z: 3
