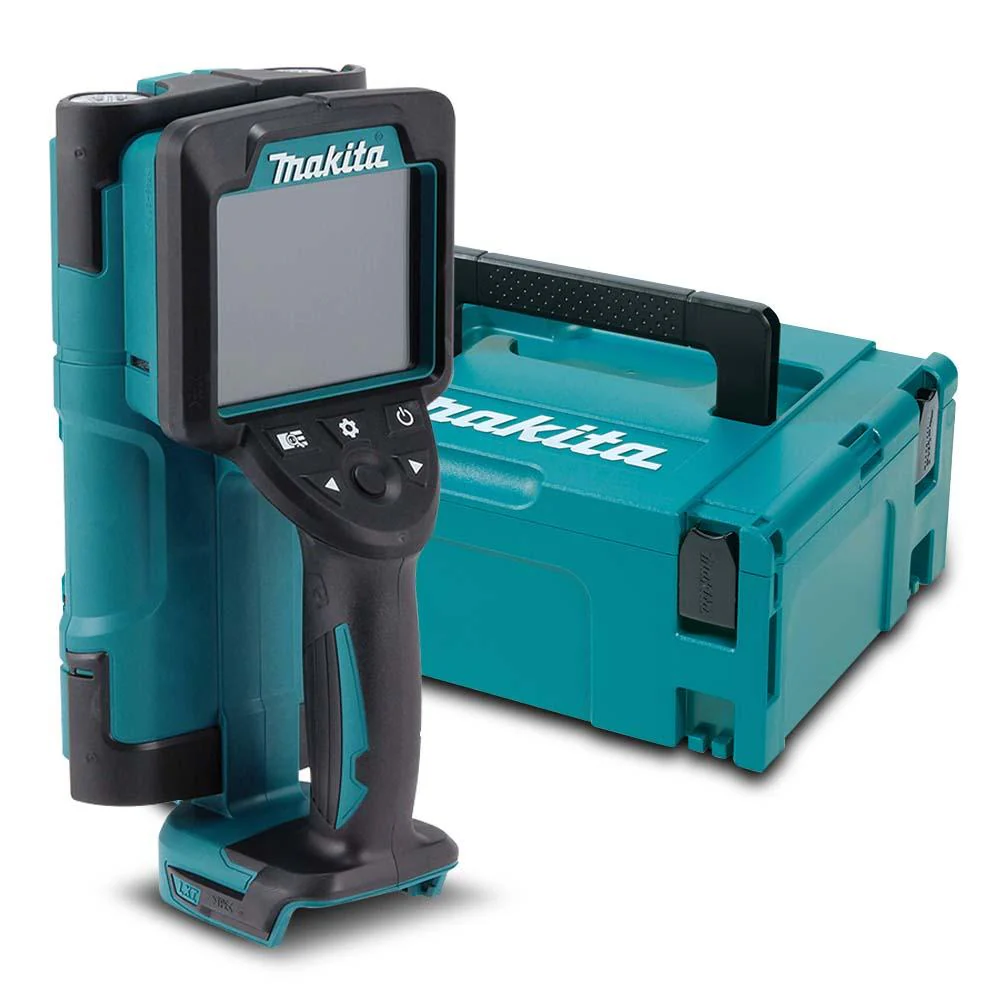

The 18V Surface Scanner quickly locates objects in multiple types of base materials to allow for immediate cutting, drilling or coring. It is capable of detecting a variety of embedded objects such as metal, wood, plastic, and shielded electrical wire up to 180mm deep. The large 100mm illuminated interface displays center, edge position, and relative width and depth of embedded objects. A laser guide assists with straight travel across the surface and provides a center position of the sensor for increased accuracy. The scanner is designed for use in demanding job sites. A rubberized over-mold, IP-54 rating, and Extreme Protection Technology (XPT) all provide increased durability. XPT is a protective seal inside the tool. It is designed to improve a tool’s operation in harsh conditions by channeling water and dust from key internal components.

Incudes:

• 1 x Makpac Case Type 2 (821550-0)

Features:

• Capable of detecting a variety embedded objects such as; metal, wood, plastic and shielded electrical wire up to 180mm deep
• Selectable base material modes allow for increased versatility in dry concrete, wet concrete, wall partitions (wood or plaster board) and hollow block
• Simplified user interface displays center, edge position, relative width and depth of embedded objects
• Multi-detection mode allows for scanning in up to three parallel surface positions; ideal for detecting objects running diagonally
• Dust and water resistance with IP54 rating for increased durability

Suitable For:

• Metal
• Wood
• Plastic
• Shielded Electrical Wire

Specifications:

• Voltage: 18V
• Max Detection Depth:
  • Metal in Concrete: 180mm
  • PVC in Concrete: 120mm
  • Stud in Plasterboard: 25mm
• Detection Accuracy: ±5mm
• Detectable Distance Between 2 Adjacent Objects: 40mm
• Runtime: 28hrs
• Dimensions: 395mm x 295mm x 160mm
• Weight: 1.7kg

Warranty:

• 3 Years Warranty Covered By Makita Australia
