Description

#Features:

* Dual stage dust extraction - dust is collected from two locations, behind the fence and behind the blade. Dust collection is more efficient through the entire cut regardless of the size of the material
* Forward rail design - newly designed rail system provides an extremely smooth cutting motion. This design also allows the saw to be placed against a wall minimising the overall footprint
* Removable sub fence - provides excellent stock stability when cutting and can easily be removed for bevel cutting
* DXT - Deep and eXact cutting Technology, allows a larger cutting capacity due to the innovative direct drive gearbox
* Soft start - suppresses start up reaction for smooth start ups
* Bevel angle adjustment - located on the front of the saw the bevel angle can quickly and easily be adjusted left and right without having to reach around the back of the saw
* Mitre angle lock - mitre angle with positive stops at 0°, 15°, 22.5°, 31.6°, 45°, and 60° left or right

#Specifications:

---
Max. cutting capacities at 90°| Max. width: 92 x 382 mm
Max. height: 107 x 363 mm
Max. cutting capacities at 45° mitre| Max. width: 92 x 268 mm
Max. height: 107 x 255 mm
Blade diameter| 305 mm (12")
Bore diameter| 25.4 mm
No load speed| 3,200 rpm
Continuous rating input| 1,800 W
Bevel capacity| 48° left - 48° right
Mitre capacity| 60° left - 60° right
Overall length| 898 mm
Net weight| 29.3 kg
Power supply cord| 2.0 m

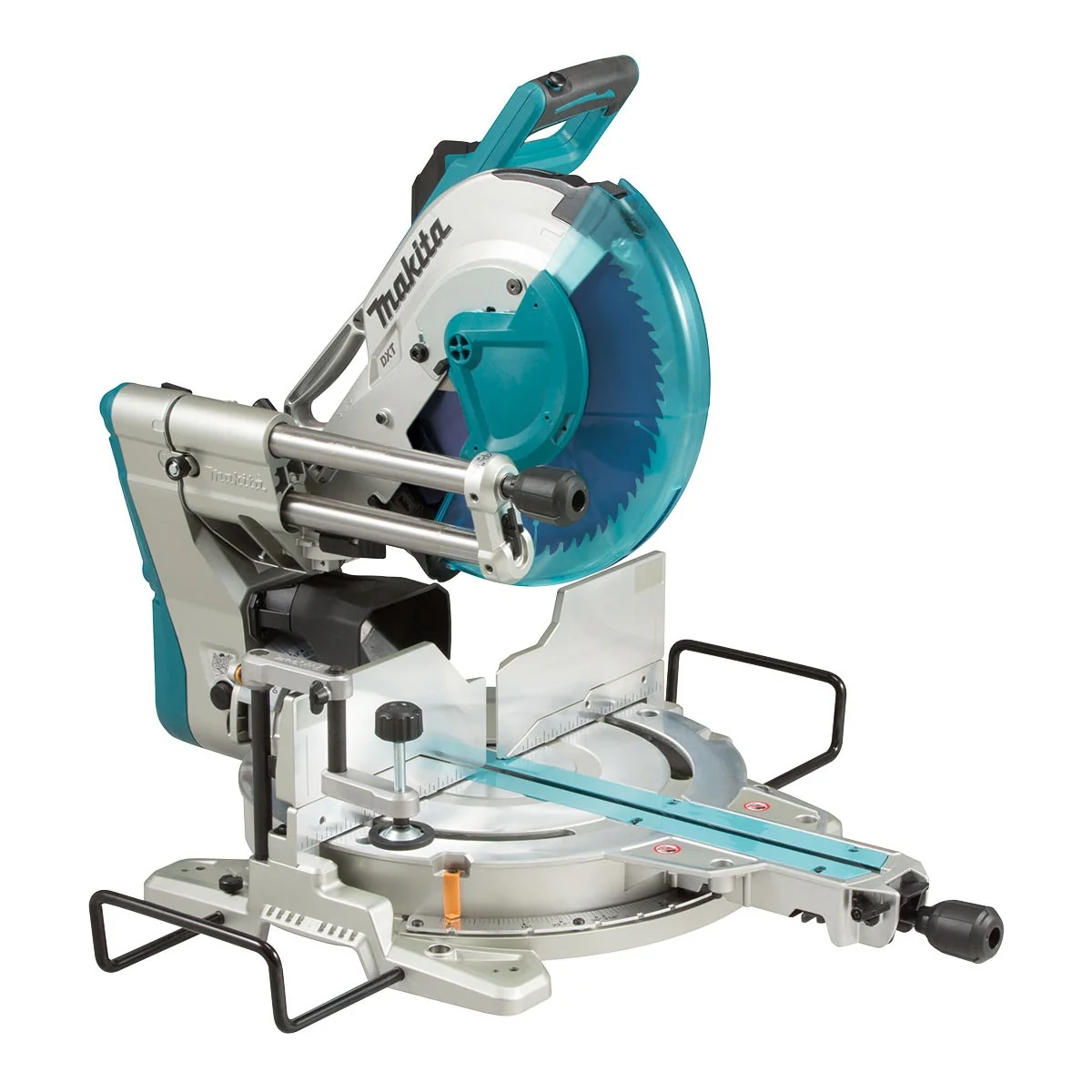

305mm Mitre Saw
