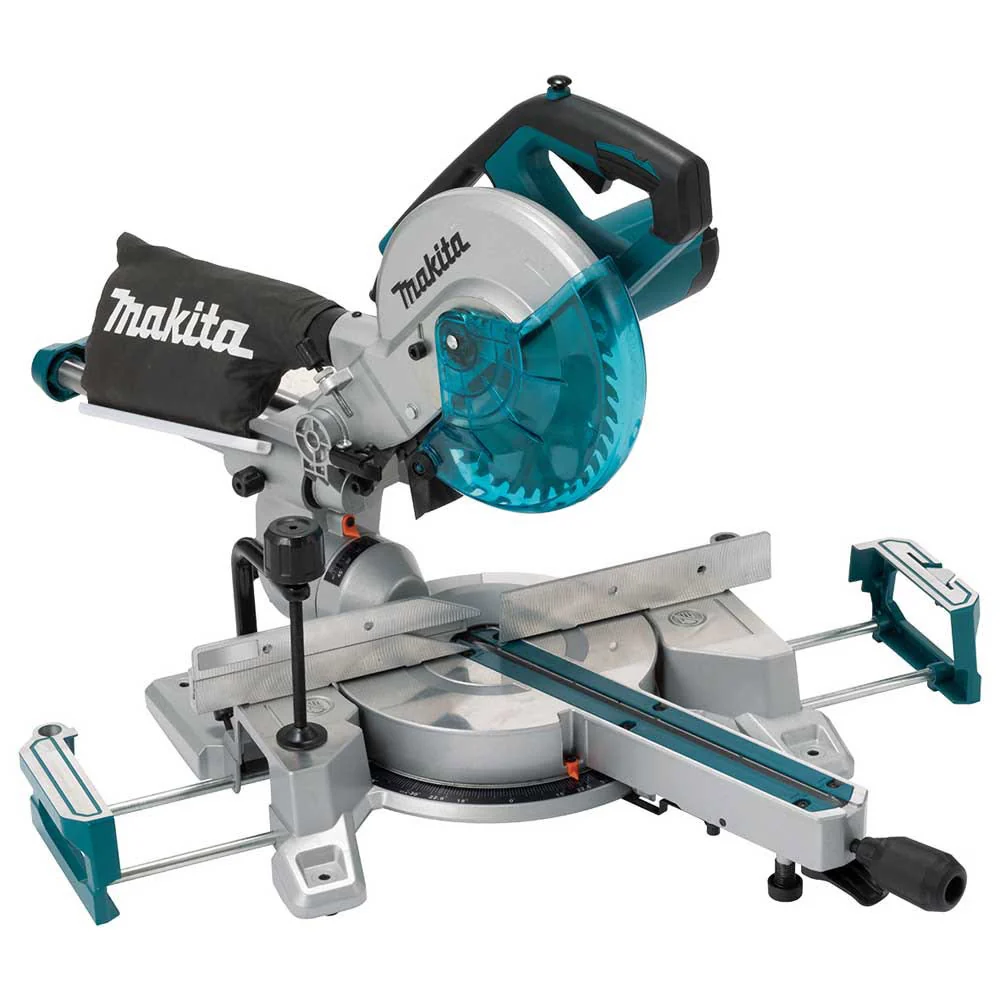

The 216mm (8-1/2”) slide compound mitre saw (LS0816F) features a 1,200W motor capable of 5,000rpm no-load speed. The LS0816F can mitre 47° to the left and right of centre, with a cut capacity of 65x305mm at 0° and 65x215mm at 45°. The bevel capacity of the LS0816F ranges from 47° to the left and 2° to the right.
The LS0816F has an LED job light that also casts a shadow of the saw blade onto the workpiece as an exact cutting line. By aligning the saw with the line on the workpiece an exact cut can be made. The base of the LS0816F is diecast aluminium, meaning the construction of the saw is sturdy while remaining light. The base has positive stops at popular mitre angles, allowing the user to lock in an angle quickly and accurately. The LS0816F has a sub-fence on the left-hand side that can be extended for more stable cutting of a wider workpiece. The handle at the top of the saw features a soft grip, and there is a carry handle to allow for easy transportation around the job site.

Maximum cut capacity of 65 x 305mm at 0°
47° left and 2° right bevel with mitre cuts at 47° left and right
1,200W* motor delivers 5,000rpm no load speed
Dual linear ball bearing rails for smooth accurate cutting
LED job light with shadow line for easy cut alignment

Specifications

Max. cut capacity at 0°: 65 x 305mm
Max. cut capacity at 45° mitre: 65 x 215mm
Blade diameter: 216mm (8-1/2")
Bore diameter: 25.4mm
No load speed: 5,000rpm
Continuous rating input: 1,200W
Bevel capacity: 47° left - 2° right
Mitre capacity: 47° left - 47° right
